B&W DM 601
From HifiWiki
Contents |
[edit] Description
[edit] Product Summary
- Manufacturer: B&W
- The DM 601 is one of the smallest in the 600 Series although it can still produce a big sound. It
has a 165 mm (6.5 in) Kevlar bass/mid-range driver that employs the same profile as B&W's more sophisticated P Series ensuring delivery of a natural, neutral sound with very low coloration.

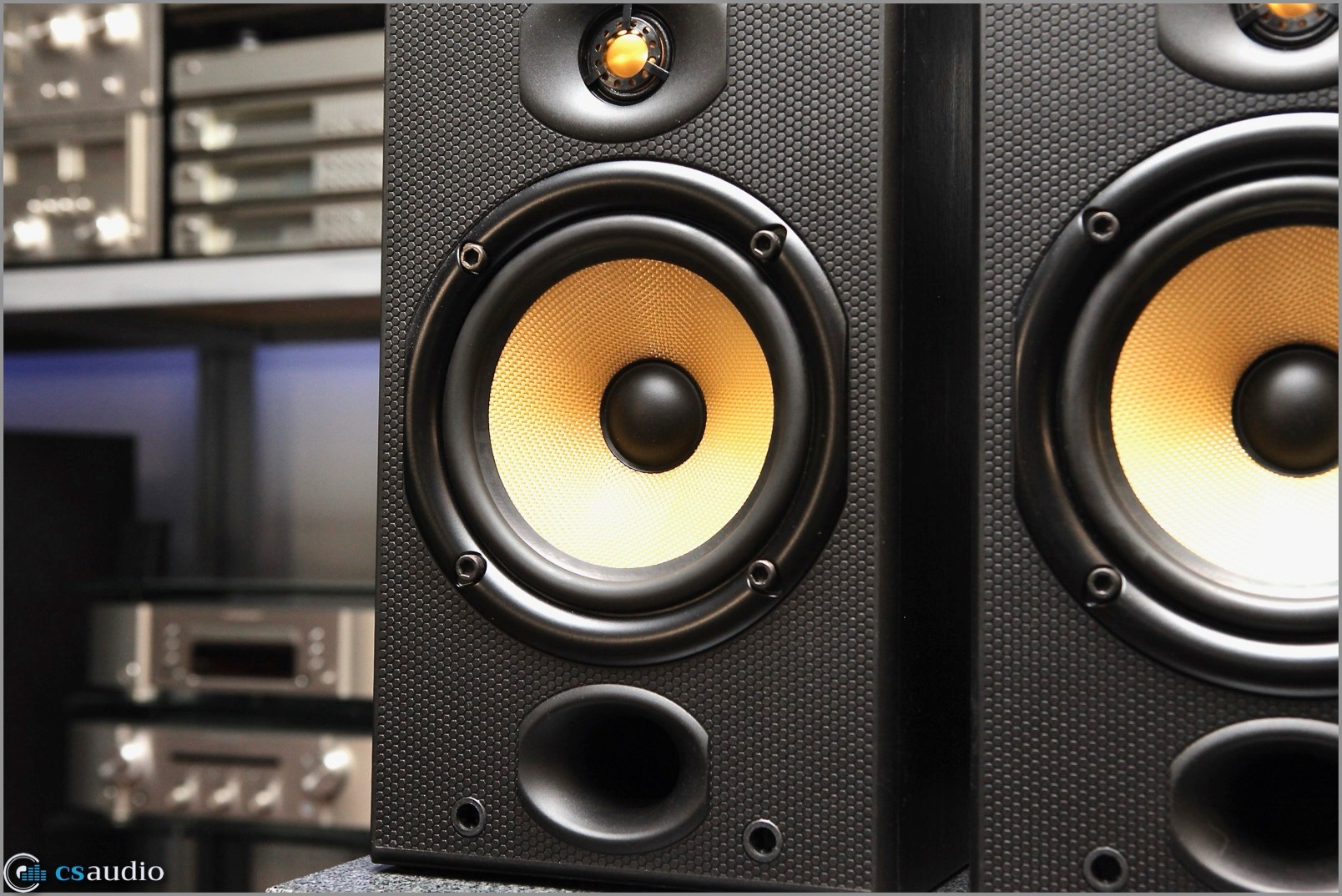

- As well as the 600 Series standard features the DM 601 also boasts flared reflex ports
which dramatically increase bass efficiency and power handling. Added to this is roundedprofile zinc clamping rings which connect the drivers to the cabinet and minimise the effect of diffraction around the drive unit as sound waves travel out across the face of the speaker cabinet.
- The DM 601 is recommended for shelf or stand mounted applications and is ideally suited
to both front and rear channel speakers in a Home Cinema system.
[edit] Technical highlights
- Kevlar: B&W developed and patented the method of using Kevlar for
loudspeaker cones to reduce unwanted standing waves. DuPont originally created Kevlar for use in bulletproof vests.
[edit] Description
- 2 way vented-box system
[edit] Drive Units

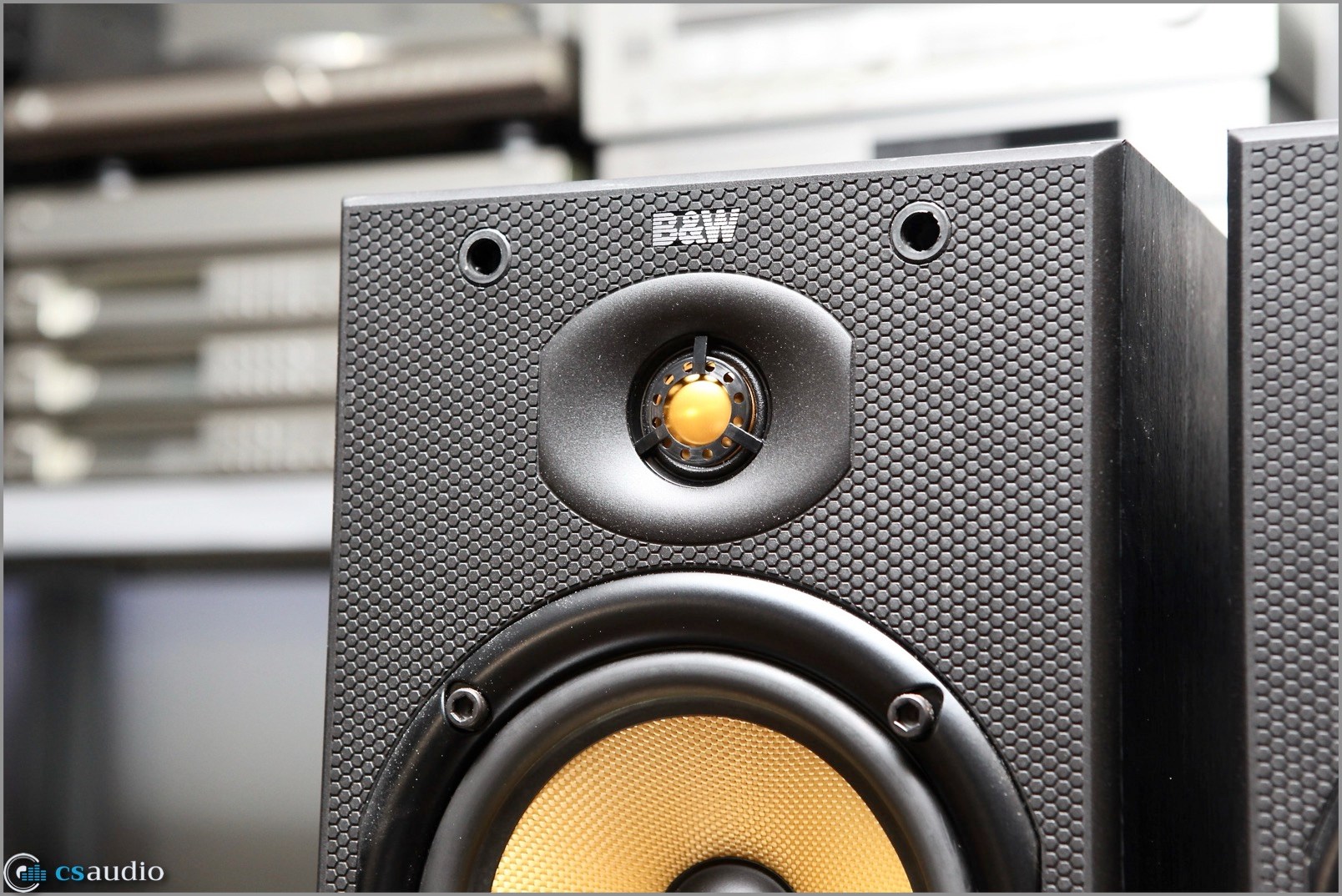

- 1x 25mm metal dome - high-frequency
- 1x 165mm Kevlar cone
- bass/midrange
[edit] Frequency Response
- 70Hz – 20kHz ± 3dB on reference axis
[edit] Sensitivity
- 88dB spl(2.83V 1m)
[edit] Nominal impedance
- 8 ohms (minimum 4.2 ohms)
[edit] Power Handling
- 25W –100W into 8 ohms on
unclipped programme
[edit] Dimensions
- Height: 356mm
- Width: 204mm
- Depth: 244mm
[edit] Finish
- Black Ash vinyl, Cherrywood vinyl
- Grille: Black Cloth
