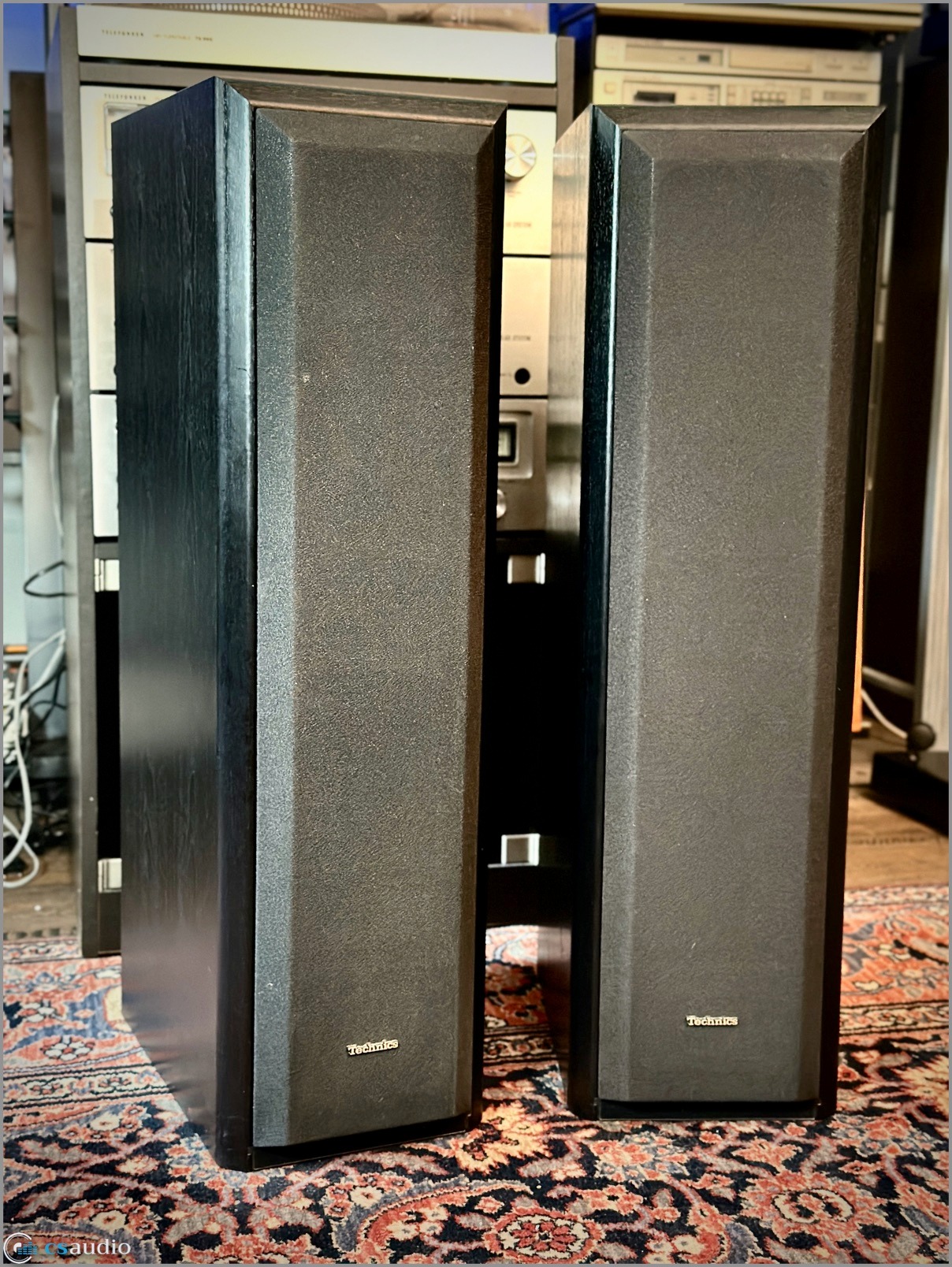

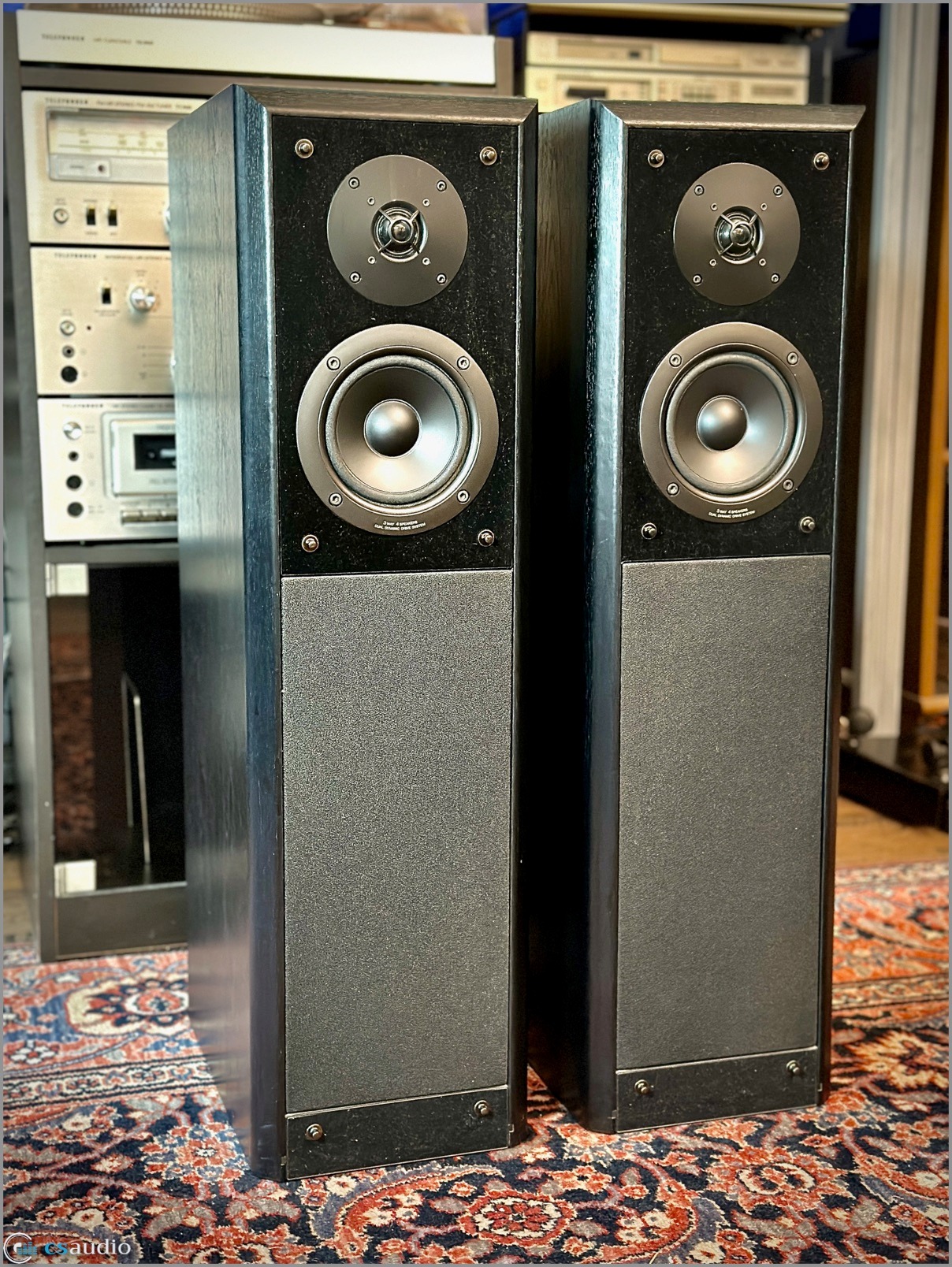

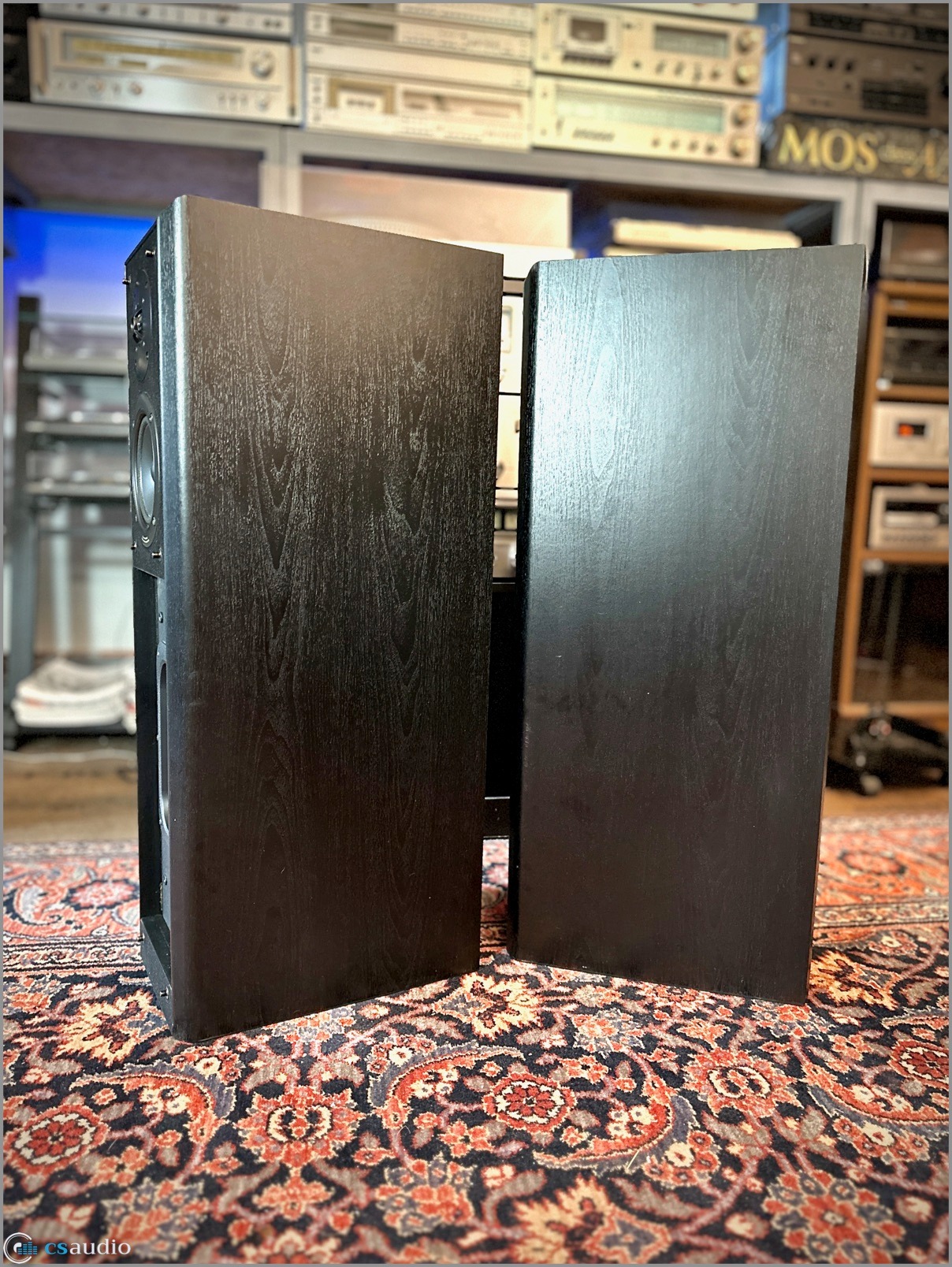

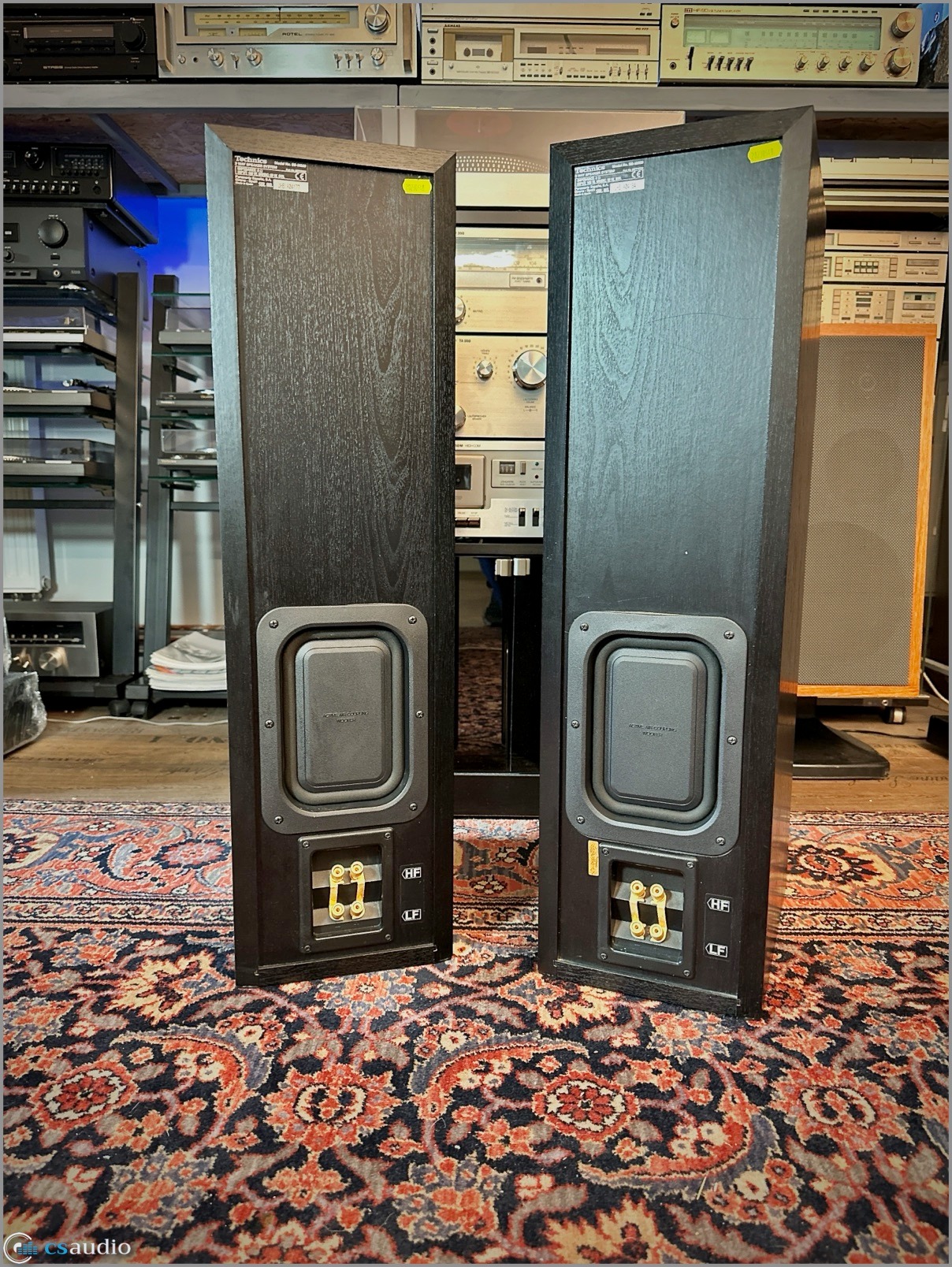

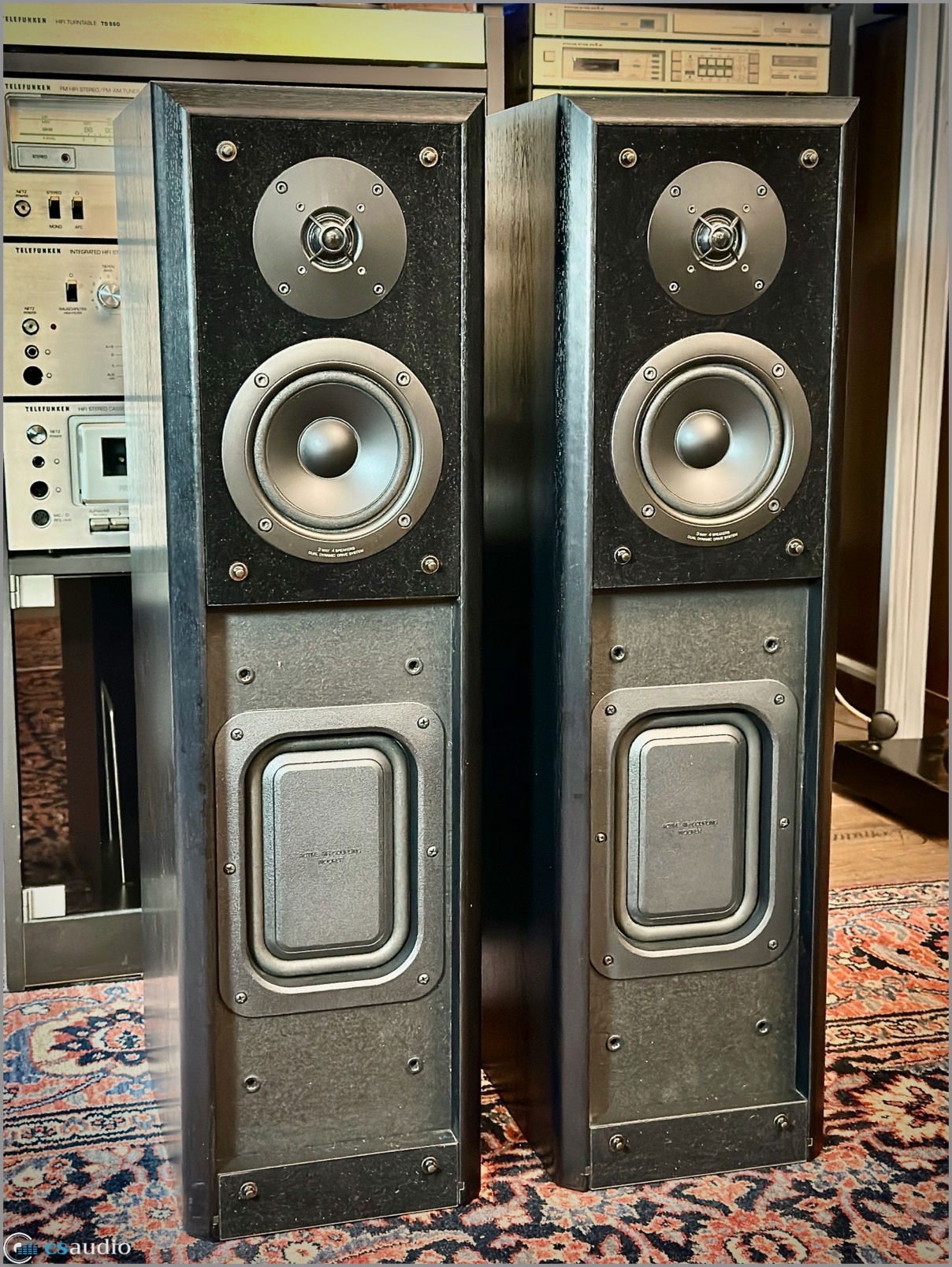

Technics SB-M 500

Data

General

• Manufacturer: Technics
• Model: SB-M 500
• Type: Loudspeaker
• Years of manufacture: 1995 - 1999
• Made in: Japan
• Dimensions: 260 x 790 x 380 mm (WxHxD)
• Weight: 26 kg
• Original price approx.: 698 DM / piece

Technical Data

• Type: 3-way, 4 speakers, DDD system with internal driver
• Chassis:

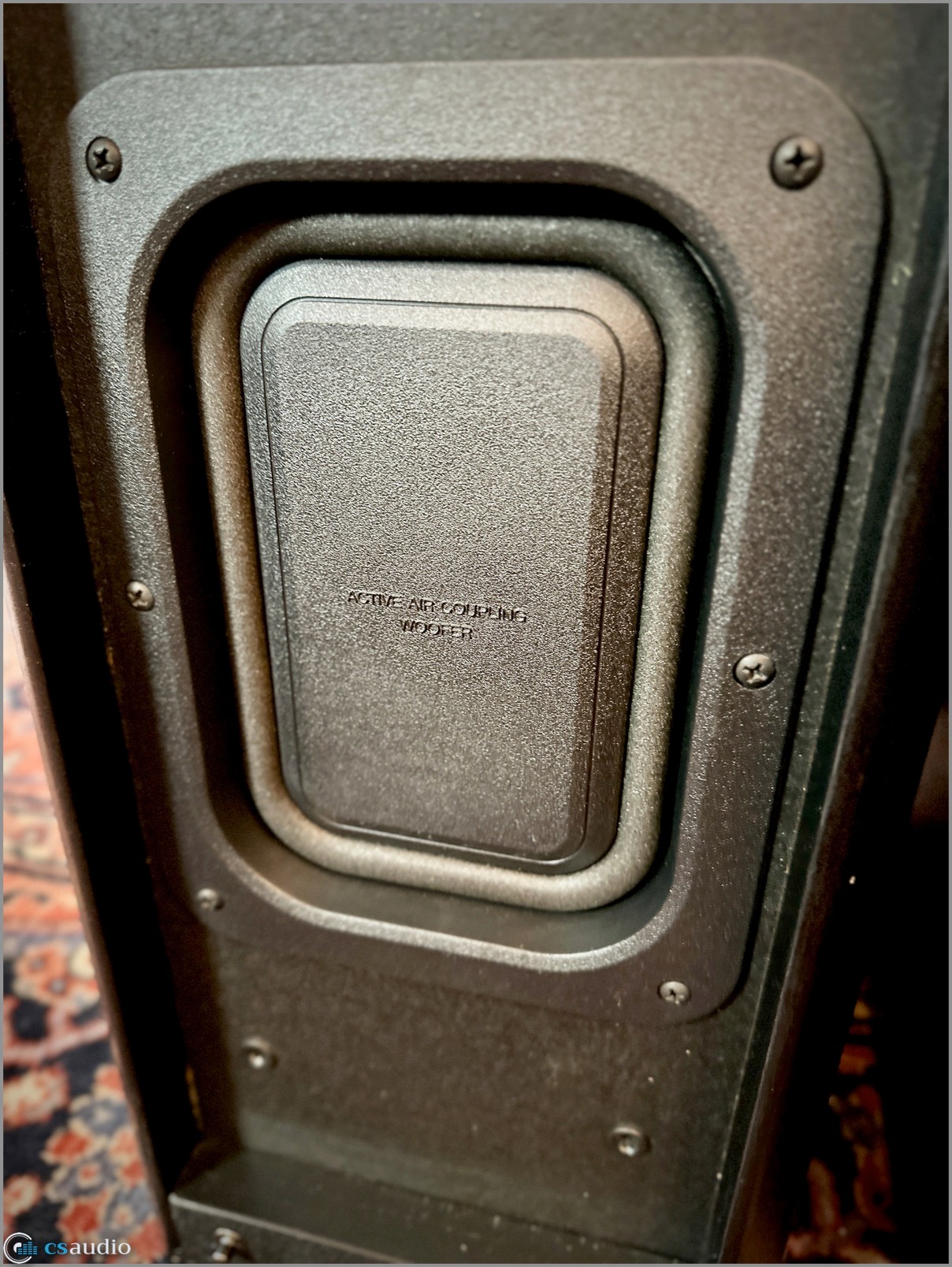

  • Sub: 2x 270 mm passive membrane

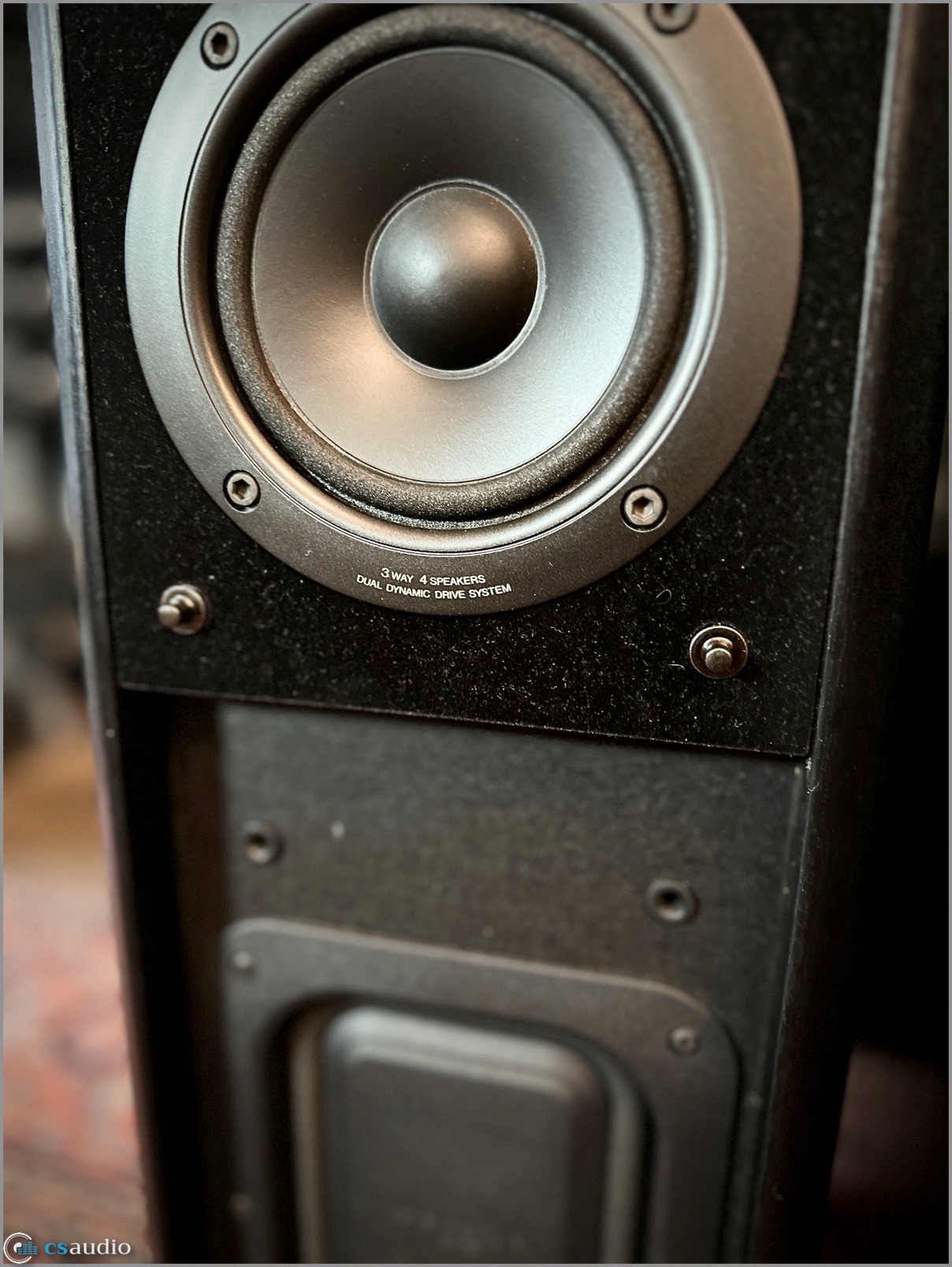

  • Low frequency: 180 mm

Midrange:

• • Tweeter: 25 mm dome tweeter
• Power handling (nominal / music): 80 W / 160 W
• Efficiency: 86 dB / W / m
• Frequency response: 30 - 65,000 Hz, -10 dB.
• Transitional ranges:
• Impedance: 6 Ohm

Special Features

• DDD Dual Dynamic Drive

Remarks

• Other models in the same series:
• Technics SB-M 01
• Technics SB-M 1
• Technics SB-M 2
• Technics SB-M 3
• Technics SB-M 4
• Technics SB-M 5
• Technics SB-M 6
• Technics SB-M 10
• Technics SB-M 20
• Technics SB-M 300
• Technics SB-M 300 II
• Technics SB-M 500
• Technics SB-M 500 II
• Technics SB-M 800
• Technics SB-M 1000
• Technics SB-M 10000

Pictures

• Extract from brochure: Technics SB-M 500, SB-M 1000
